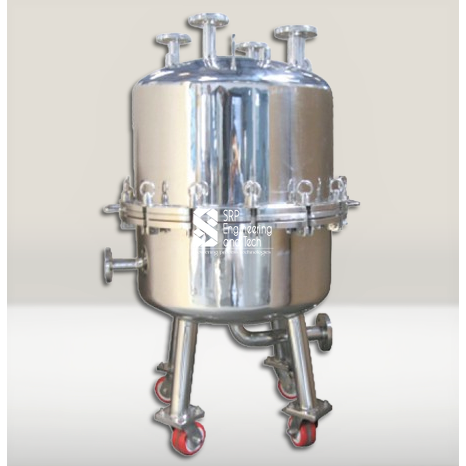

Pressure Nutsche Filter (PNF)

A Pressure Nutsche Filter (PNF) is an industrial filtration unit that operates under vacuum or pressure to separate solids from liquids. The filtration process is done in a closed vessel to ensure odorless, contamination-free, non-polluting working conditions, and maintains product purity and hygiene, these are used in the manufacturing process of various Pharmaceutical API products, Food Products, Chemicals, Fine Chemical, Agro Pesticides, Chemicals, Dyes and Intermediates, Paint, Insecticides, and for Sterile applications as well.

  1. Filtration Process: The liquid feed is introduced into the vessel, and pressure is applied to push the liquid through the filter media. The solid particles are retained, creating a cake on the filter surface.
  2. Cake Formation: Over time, the solid particles build up as a filter cake, which must be removed periodically to maintain optimal filtration performance.
  3. Cake Washing (Optional): In some applications, the filter cake may be washed to remove residual liquid or impurities, improving the purity of the filtrate and the quality of the solid cake.
  4. Cake Discharge: After filtration and washing, the cake is discharged from the filter through a mechanical scraping or blowing process.
  5. Filtrate Collection: The filtered liquid (filtrate) is collected for further processing or disposal.
  • Capacity: 100 Liter to 5000 Liter
  • Pressure Range: F.V.-25 Kg/Cm2
  • Temperature Range: -200 to 350 ˚C
  • Surface Finish: ≤ 0.4 μm (Mirror & Matt)
  • Mfg. Standard: ASME Sec.VIII Div.1 & cGMP
  • Offered MOC: SS304L, SS316L, SS310, Duplex / Super Duplex Stainless Steel, Hastelloy C22 & C276, Mild Steel, and any specific material as per process requirement.
  • Handling capacity: Wide range of products, provides flexibility for various applications.
  • Innovative Technology: Features state-of-the-art design that enhances both efficiency and performance.
  • Chemical Industry: For the filtration of solvents, chemicals, and catalysts in processes like acid treatments, crystallization, and slurry filtration.
  • Pharmaceutical Industry: To ensure the purity of active pharmaceutical ingredients (APIs) and other compounds by filtering suspensions and slurries.
  • Food and Beverage: In the filtration of edible oils, juices, and other liquid products to remove suspended solids, pigments, or particles.
  • Wastewater Treatment: For the removal of solids from wastewater streams, ensuring compliance with environmental standards.
  • Mineral Processing: In the filtration of mineral slurries, tailings, and other solid-liquid mixtures.
  • High Quality:Our Pressure Nutsche Filters (PNF) are designed to deliver superior filtration performance with maximum efficiency, durability, and reliability.
  • Tailored Solutions:: We offer customized designs to meet the specific needs of your filtration process, from laboratory-scale systems to large industrial units.
  • Expert Support: Our team of experienced engineers provides complete support, from system design and installation to maintenance and optimization
  • Proven Performance: With years of experience in industrial filtration, our Pressure Nutsche Filters (PNF) are trusted by companies around the world to handle complex and high-demand filtration tasks.
