At SRP Engineering and Tech,we offer a comprehensive range of Packing and Internals (Mass Transfer Products) for various process plant applications, designed to enhance mass transfer efficiency, optimize separation processes, and ensure smooth operations.
Our packing solutions are engineered to meet the specific needs of industries such as pharmaceutical process, chemical process, petrochemical, oil & gas, and water treatment, providing maximum performance and reliability.
Our high-quality mass transfer products are designed to optimize mass transfer, reduce pressure drop, and improve overall process performance. Our mass transfer products solutions are integral to the effective operation of columns and vessels, ensuring optimal separation, absorption, stripping, and distillation processes.
Packing are integral to creating optimal contact between the phases in a separation system, ensuring maximum surface area for the required chemical or physical interactions.
We offer a wide range of packing solutions designed to provide effective mass transfer and minimize energy consumption.
Ideal for high-efficiency separations, structured packing creates high surface area and reduces pressure drop, making it perfect for applications requiring high throughput and low operational costs.
| 60 | 125 | 250 | 350 | 500 | 750 |
|---|
| 60 | 125 | 250 | 350 | 500 | 750 |
|---|

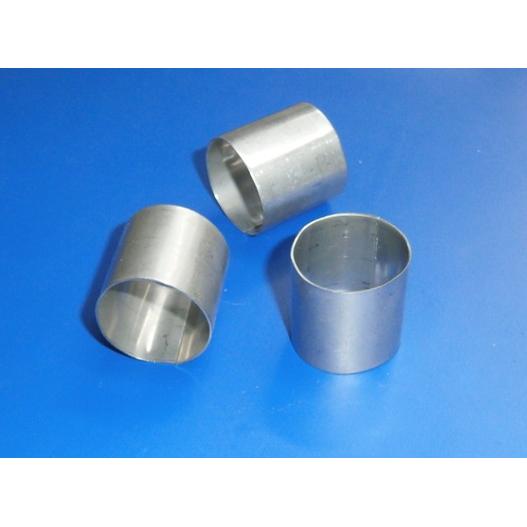

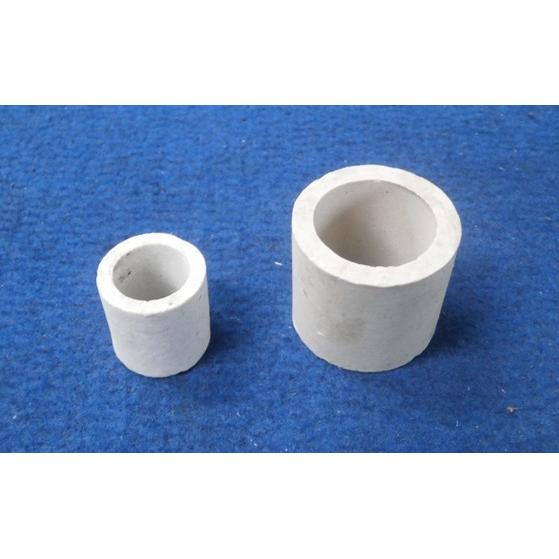

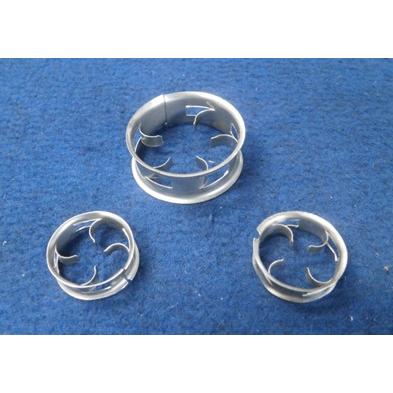

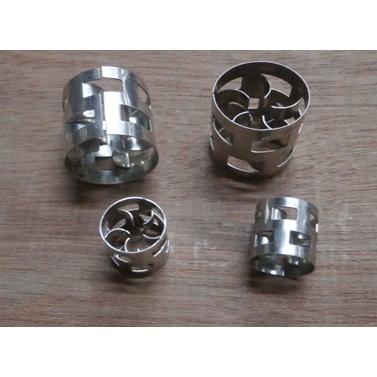

Our random packing options, including Berl saddles, Raschig rings, and Pall rings, are designed for versatile and cost-effective use in various distillation, absorption, and extraction processes.
| Size | Nos/m3 | Surface area (m2/m3) | Voiadage | Packing Factor (F) |
|---|---|---|---|---|
| S15 | 3,47,500 | 290 | 95 | 51 |
| S25 | 1,36,500 | 226 | 96.2 | 41 |
| S40 | 50000 | 150 | 97.3 | 24 |
| S50 | 14750 | 99 | 98 | 18 |
| S70 | 4625 | 59 | 98 | 12 |
| Size | Nos/m3 | Surface area (m2/m3) | Voiadage | Packing Factor (F) |
|---|---|---|---|---|
| P13 | 4,00,000 | 430 | 90 | 73 |
| P16 | 2,10,000 | 345 | 93.1 | 71 |
| P19 | 1,00,000 | 250 | 94 | 63 |
| P25 | 51000 | 208 | 94.5 | 48 |
| P38 | 13500 | 131 | 95 | 28 |
| P50 | 6500 | 98 | 96 | 20 |
| P75 | 1820 | 71 | 96 | 18 |
| Size | Nos/m3 | Surface area (m2/m3) | Voiadage | Packing Factor (F) |
|---|---|---|---|---|
| R13 | 4,00,000 | 430 | 87 | 73 |
| R16 | 2,10,000 | 345 | 90 | 71 |
| R19 | 1,00,000 | 250 | 91 | 63 |
| R25 | 51000 | 208 | 92 | 137 |
| R38 | 13500 | 131 | 95 | 82 |
| R50 | 6500 | 98 | 96 | 57 |
| R75 | 1820 | 71 | 96 | 45 |
We offer both metallic and plastic packing materials, each suited to different chemical and temperature conditions, ensuring durability and resistance to corrosion.
SS304L, SS316L, SS310, Duplex / Super Duplex Stainless Steel, Hastelloy C22 & C276, PP and any specific as per process requirement etc.

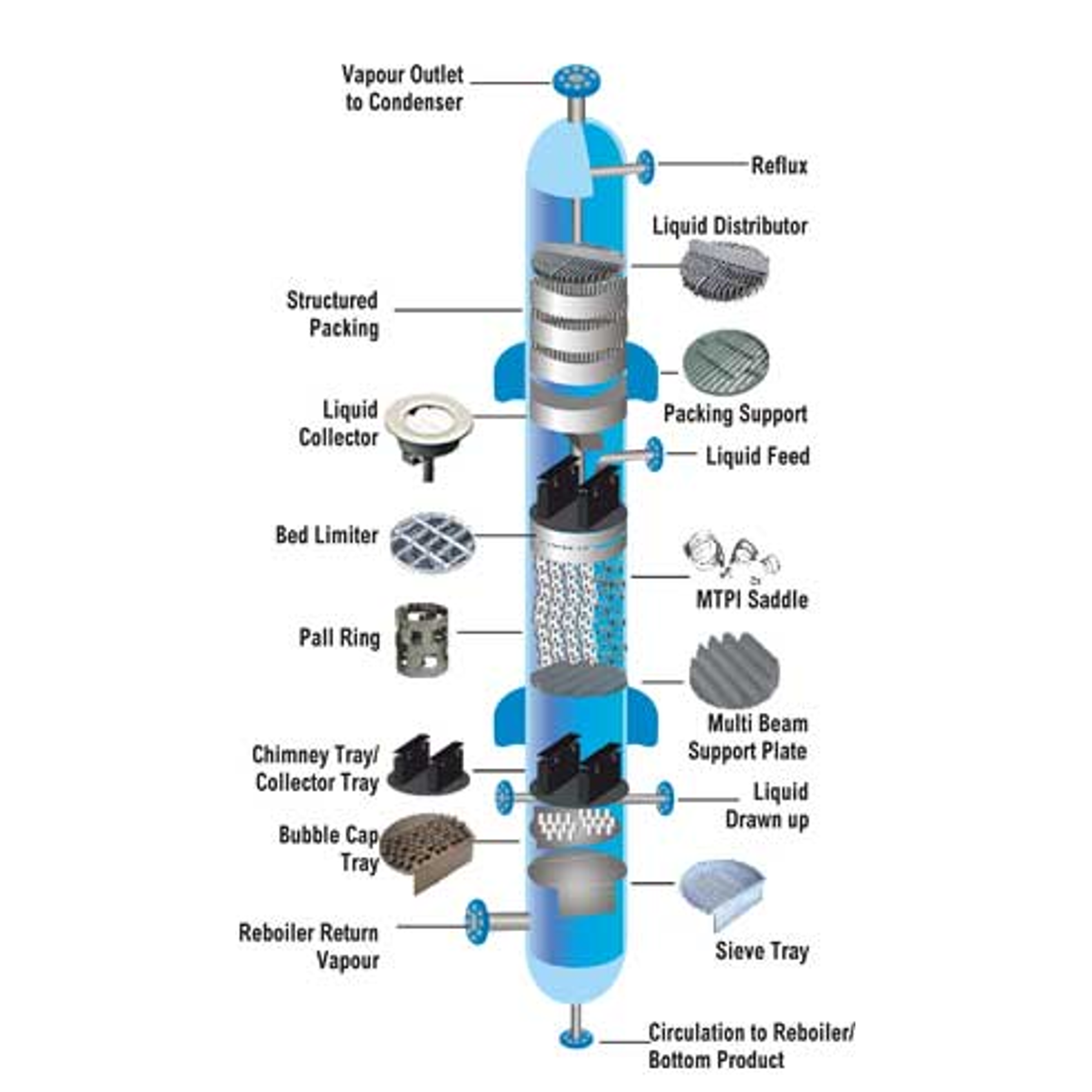

Internals are the key structural components inside separation columns & vessels that enhance the performance of the packing material and ensure the proper distribution of phases within the column. Our internals are designed for durability, reliability, and enhanced operational performance

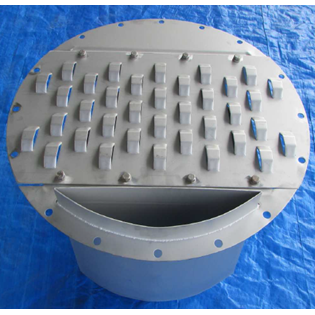

We supply high-performance tray internals for distillation and absorption columns, including sieve trays, valve trays, and bubble cap trays.

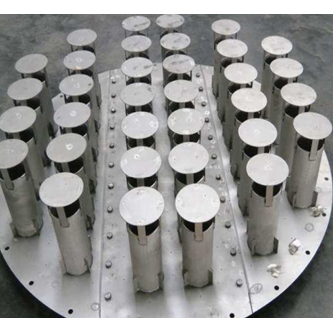

We supply liquid and vapor distributors and collectors that ensure uniform flow and optimal phase distribution across the column, critical for efficient mass transfer and minimal channeling.
These essential internals are used to support and stabilize the packing material, ensuring the integrity of the column and preventing any shift or collapse during operation.

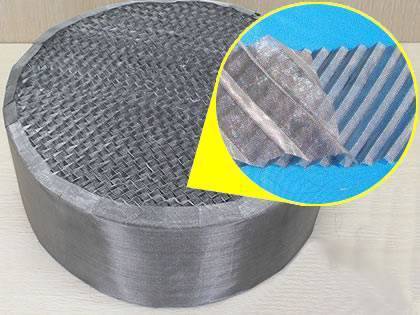

Installed at the top of the column, demisters efficiently separate entrained droplets from vapor, ensuring the purity of the overhead product and preventing flooding in the column.
Our phase separators are designed to improve the separation of liquid and vapor phases at various stages of the process, optimizing phase interaction and maximizing product recovery.
SS304L, SS316L, SS310, Duplex / Super Duplex Stainless Steel, Hastelloy C22 & C276, PP and any specific as per process requirement etc.
