Paddle Mixer

The Paddle Mixer is a highly efficient industrial mixer used to mix dry powders, semi-dry solids, and the addition of ingredients.

At SRP Engineering and Tech, we offer Paddle Mixers in both U-shape and W-shape configurations, ensuring maximum mixing efficiency for various operational needs.

Our Paddle Mixers are manufactured to the highest standards of quality and performance, making them ideal for a wide range of industrial applications.

Paddle Style agitators are specially designed to scoop, lift and tumble materials in a gentle, but thorough mixing action. While being mixed, the material travels in a three dimensional "figure 8" pattern. the material is constantly being pulled from the ends of the mixer to the middle of the "figure 8" where the most aggressive mixing is taking place. This unique paddle design is ideal for mixing solids or liquids of various particle size, density and viscosity. The gentle scooping action is ideal for blending fragile ingredients such as nuts or fiberglass strands. Paddle mixers work effectively when filled to as little as 20% of rated capacity, thus allowing flexibility of batch sizes. Paddle style agitators allow easier access for cleaning between batches.

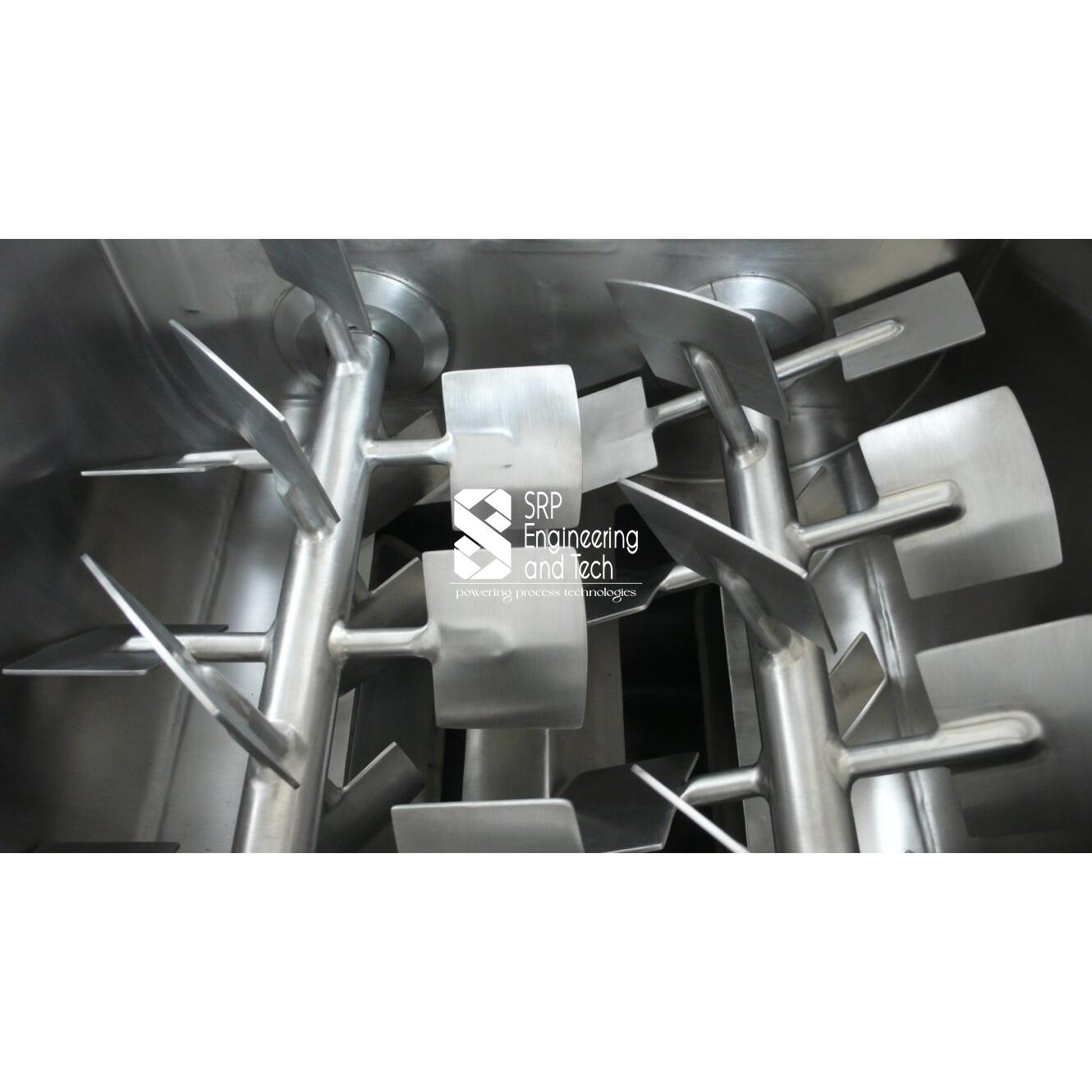

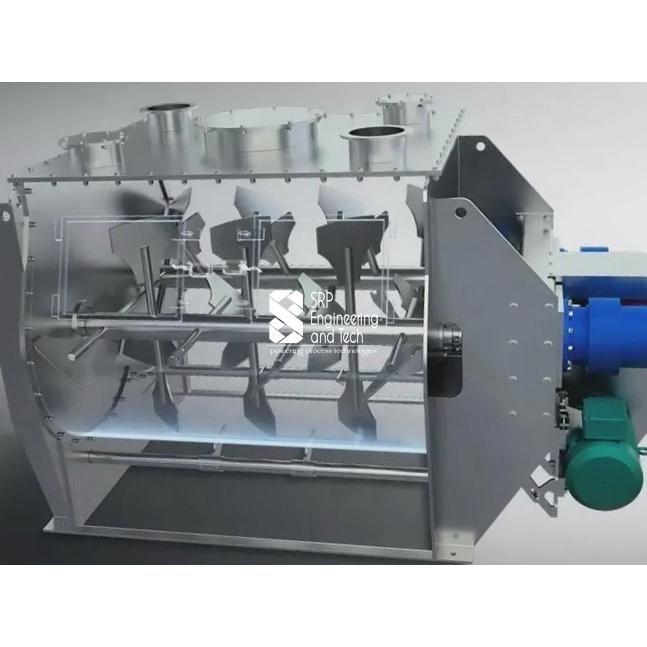

Our Paddle Mixer features a rotating shaft with opposite direction paddles. The design of the paddle and the trough shape (U-shape or W-shape) ensures a continuous and thorough mixing action, where materials move from the center of the blender to the sides and back, achieving a uniform mixing
